🔥Specifications

 Iron Gate Technical Parameters

Main Specifications:
Frame Material: Hot Dip Galvanized Steel Tube
Weight: 265 lbs
Gate Width: 18.6 FT
Gate Edge Height: 6.14 FT
Gate Center Height: 7.14 FT
Frame Finishing: Powder-coated
Nominal Gate Height: 7 FT
Nominal Gate Width: 20 FT
Package Includes: 2x door panels
Gate Panel Thickness: 2 inch
Picket Spacing: 4.17 inch
Picket Tube: 0.75" x 0.75" x 0.04" (Wall Thickness)
Rail Tube: 2.0" x 2.0" x 0.1" (Wall Thickness)
Frame Tube: Hollow
Finials/Scrollwork/Pattern: Solid
Warranty: 1 Year
Volume Capacity: 0 m³

Technical Parameters

Main Specifications:

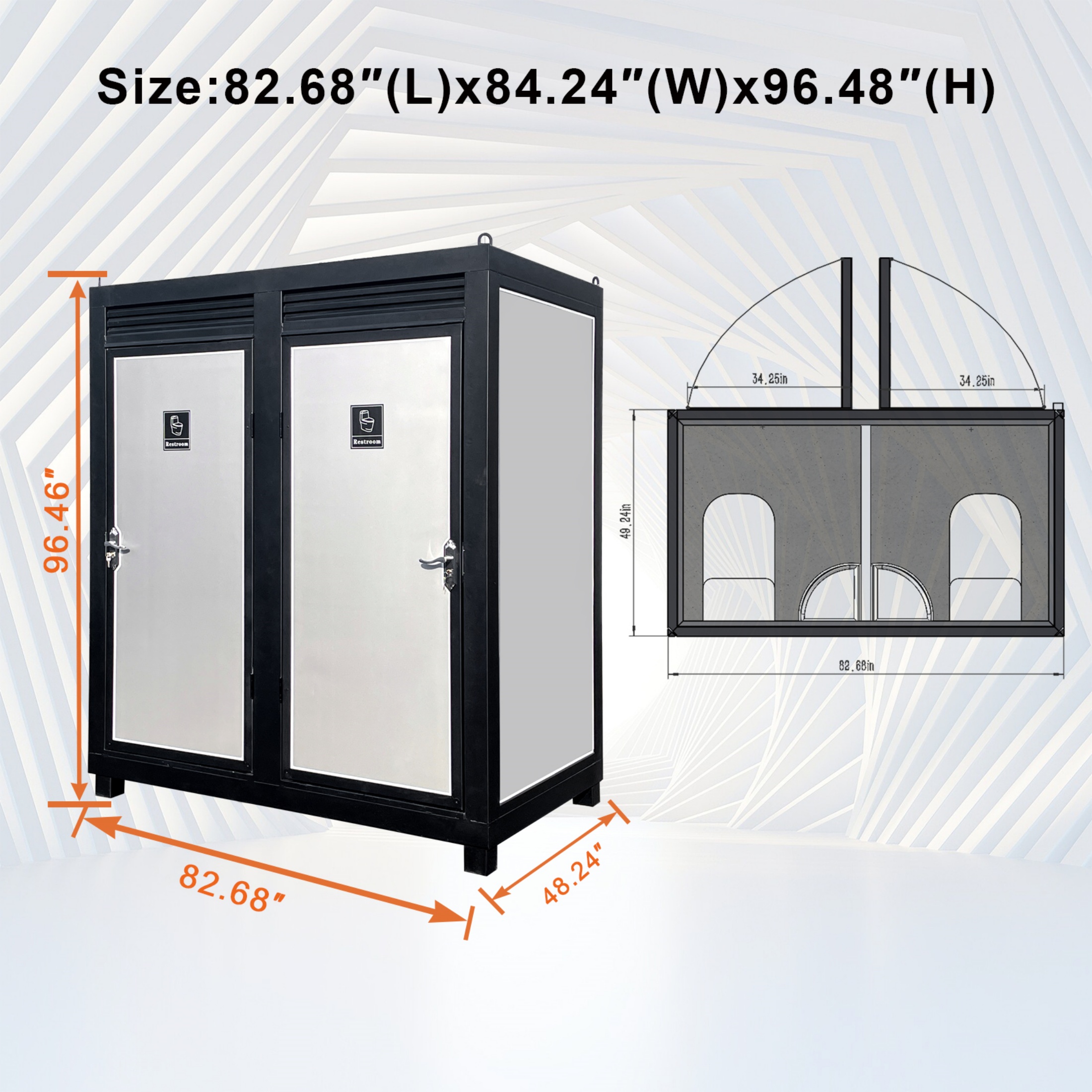

External Dimension (LxWxH): 82.7" x 47.2" x 96.5"
Door Size (each): W34.3" x H73.5"
Interior Dimension per Stall (LxW): 44.6" x 38.2"
Net Area per Stall: 11.83 ft²
Frame: Q235 Steel
Roof Material: 2-inch EPS fire-resistant & insulated roof panels
Wall Material: 2-inch EPS fire-resistant & insulated wall panels
Doors Material: EPS Composite Panel, Outward Opening Door
Floor Material: Anti-skid and wear-resistant floor leather + Hard PVC board
Thermal Resistance Value: 7.09 ~ 8.27
Circuit Breaker Specification: 13 ~ 16 Amps
Power Supply: 110V ~ 220V
Wire Information: 3 core 1.5 sqmm
Wiring Instructions: Red Wire: Live Wire; Blue Wire: Neutral Wire; Green or Yellow-green Wire: Earth Wire.
Flush Volume (per toilet): 1.6 gpf

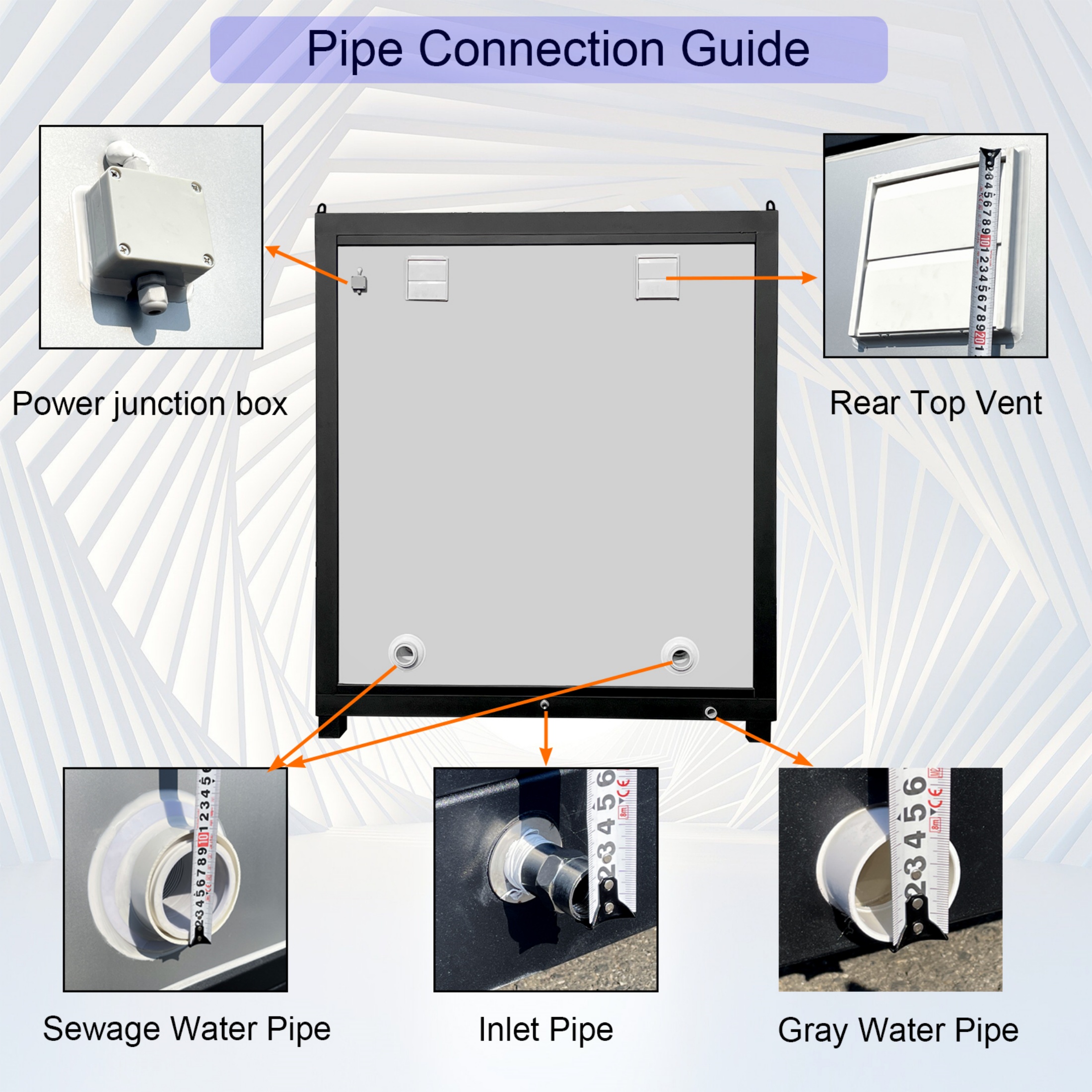

Inlet Pipe: 3/4" PEX Pipe
Drain Pipe - Black Water: 4.3" PVC Pipe
Drain Pipe - Gray Water: 2" PVC Pipe
Lowest Pipe Working Temperature: 14°F
Fire-proof Level: B2
Wind Load Rating: 40 miles/h
Snow Load Rating: 125 lb/sqft
Lifespan: 20+ Years
Volume Capacity (Estimated Total): Approximately 4.88 m³ (172.4 ft³)

🔥Main Features of Iron Gate & Double-Stall Portable Toilet

Main Features of Iron Gate

【Premium Durable Material】: Frame constructed from Hot Dip Galvanized Steel Tube, featuring excellent rust and corrosion resistance. Combined with powder-coated finishing, it ensures long-term reliable use in outdoor environments.

【Large-Scale & Practical Design】: Nominal width 20FT (actual 18.6FT) and nominal height 7FT (edge height 6.14FT, center height 7.14FT), providing extra-wide passage space to meet the needs of various large-area access scenarios.

【Sturdy & Secure Structure】: 2-inch thick gate panels with 4.17-inch picket spacing for enhanced safety. Equipped with 2.0×2.0×0.1 inch rail tubes and 0.75×0.75×0.04 inch picket tubes, the hollow frame balances light weight and sturdiness effectively.

【Elegant Appearance Details】: Comes with solid finials, scrollwork and patterns, integrating practical protection with decorative aesthetics, suitable for courtyards, parks, construction sites and other occasions.

【Convenient Installation & Warranty】: Package includes 2 door panels, adopting a modular design for easy assembly without professional tools. Backed by a 1-year warranty, ensuring worry-free after-sales service.

【Reliable Weight-Bearing Performance】: Weighs 265lbs, with a robust structure that can withstand daily use and external impacts, ensuring stable performance.

Main Features of Double-Stall Portable Toilet

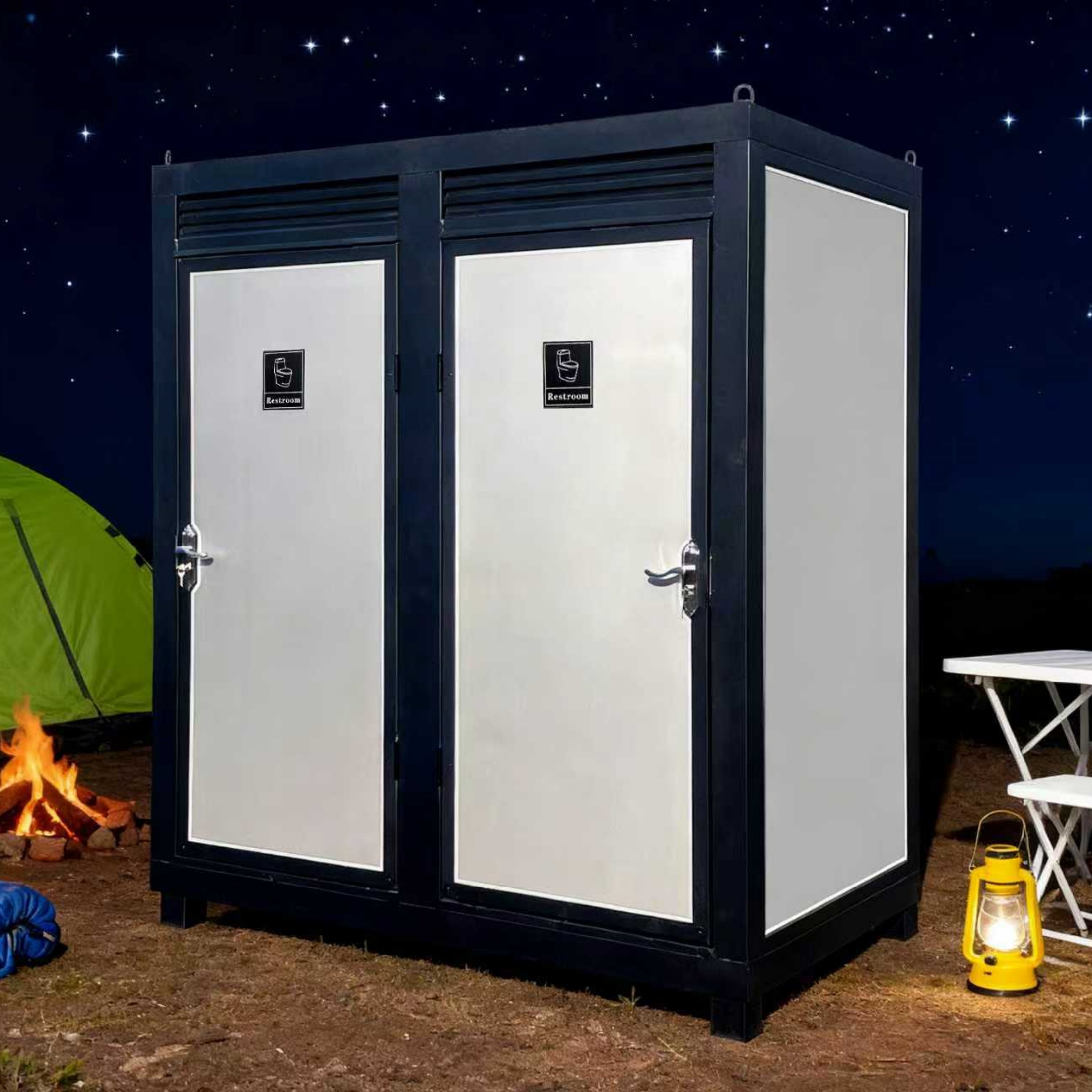

【Two-Person Capacity & Hygienic Solution】: Designed as a double-stall restroom, providing a practical and hygienic outdoor sanitation solution. Ideal for construction sites, outdoor festivals, event venues and other high-traffic scenarios.

【Heavy-Duty & Long-Lasting Structure】: Frame made of Q235 Steel, paired with 2-inch EPS fire-resistant and insulated wall/roof panels (fire-proof level B2). Ensures a lifespan of over 20 years, suitable for long-term outdoor deployment.

【Spacious & Comfortable Interior】: Overall dimensions: 82.7" (L) × 49.3" (W) × 96.5", with each stall's interior dimension 44.6"×38.2" and net area 11.83ft². Optimized height and width, plus 34.3"×73.5" outward-opening EPS composite doors, enhance user comfort and convenience.

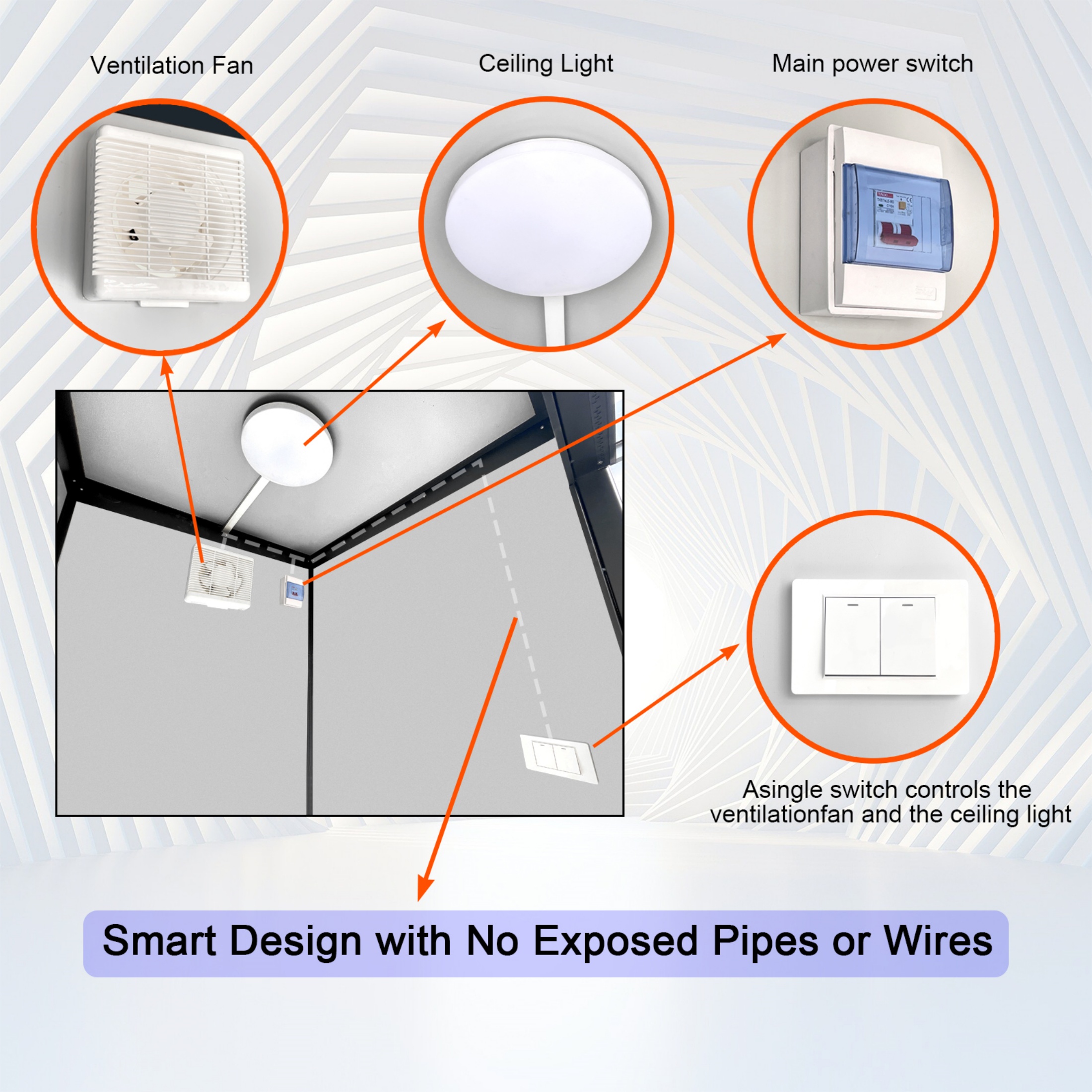

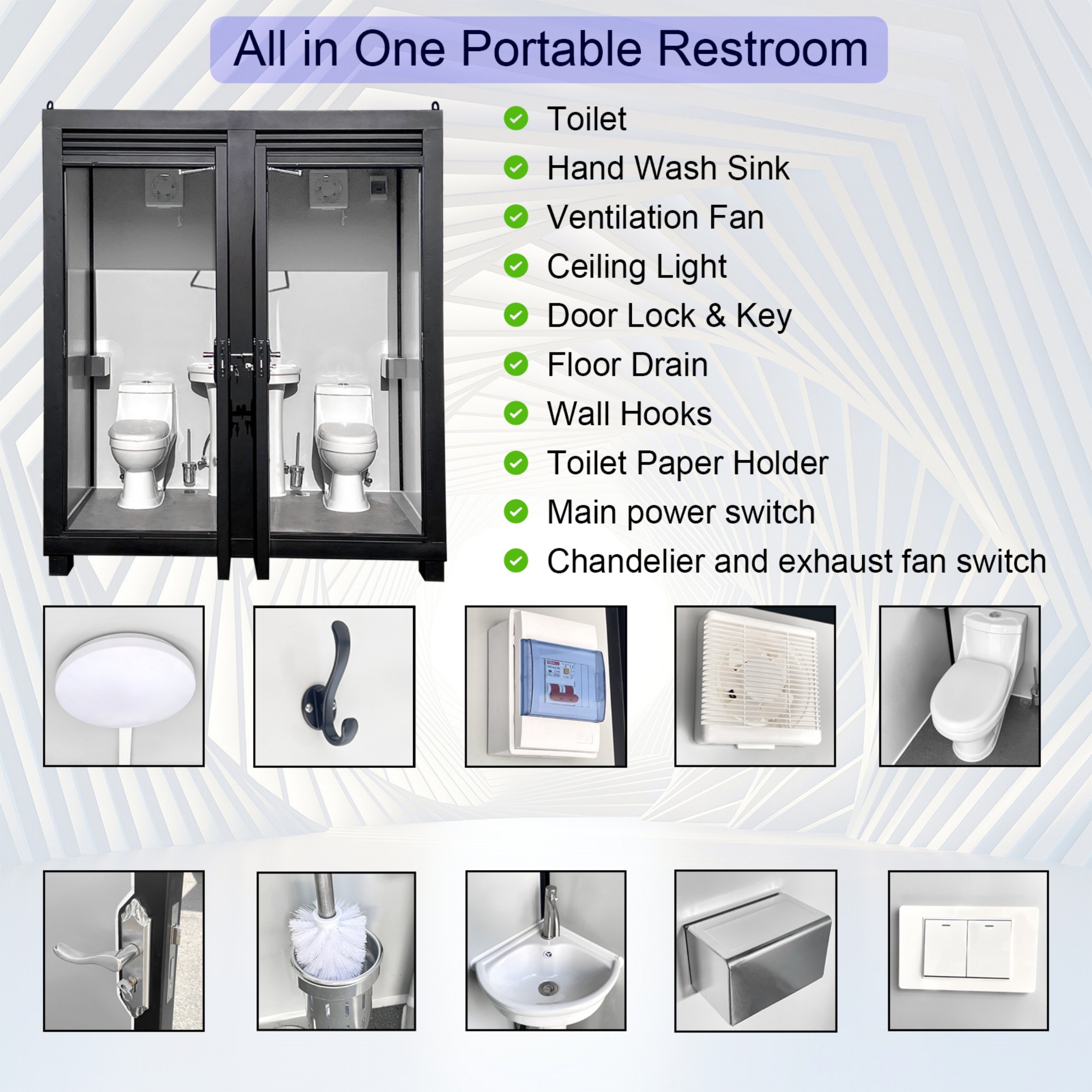

【Full Configuration & Comprehensive Functions】: Equipped with double toilet, wash basin, lighting, ventilation fan, exhaust vent, wall hooks and floor drain. 1.6 GPF flushing volume ensures efficient cleaning, while 3/4" PEX inlet pipe and dedicated drain pipes (4.3" PVC for black water, 2" PVC for gray water) guarantee smooth drainage.

【Excellent Environmental Adaptability】: Weather-resistant exterior with UV resistance, rust resistance and impact resistance. Can withstand wind load of 40 miles/h and snow load of 125 lb/sqft. Minimum pipe working temperature of 14°F, adaptable to extreme weather conditions.

【Efficient Thermal Insulation】: Thermal resistance value ranges from 7.09 to 8.27, effectively maintaining internal temperature stability and providing a comfortable user experience in both hot and cold environments.

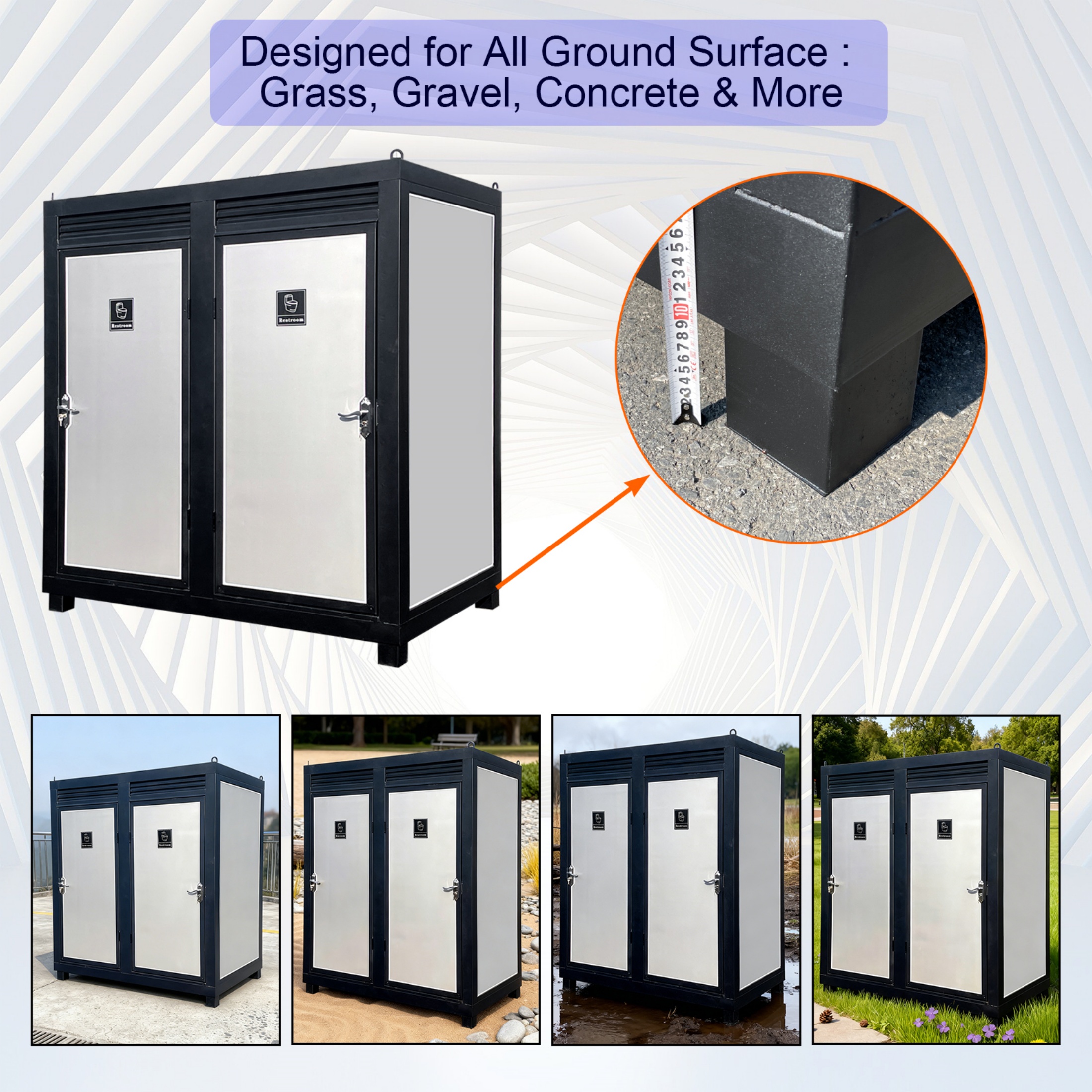

【Quick & Easy Assembly】: Modular structure allows fast installation without professional tools, enabling rapid deployment in time-sensitive scenarios. Sturdy and easy-to-move design facilitates flexible placement.

【Safe & Reliable Electrical System】: 110V~220V wide voltage power supply, 3-core 1.5 sqmm wires with clear wiring instructions (Red: Live, Blue: Neutral, Green/Yellow-green: Earth). Equipped with 13~16 Amps circuit breaker, ensuring safe and stable operation.

【Durable & Easy-to-Clean Floor】: Adopts anti-skid and wear-resistant floor leather combined with hard PVC board, preventing slipping hazards and facilitating daily cleaning and maintenance.
